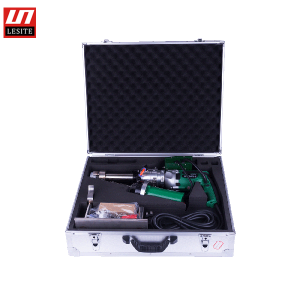

LST600C Plastic Manual Extruder

Short description:

The extrusion welding gun has the functions of dual independent heating of base material and welding rod, digital temperature control display, 360-degree rotating welding nozzle, motor cold start protection and other functions. The shape design of the extrusion drill blower makes it possible to weld quickly even in small welding occasions. . The welding gun is mainly used for welding HDPE, PP plastic pipes, plastic plates, plastic decks, plastic water tanks, and plastic film materials.


Advantage

Specifications

Application

Video

Manual

Advantage

Dual heating system

The electrode feeding heating system and hot air heating system ensure the best welding quality.

Digital display controller

Microcomputer chip control, simple and intuitive operation, strong protection function

360 degree rotating welding head

The 360-degree rotating hot-air welding nozzle can meet different needs.

Motor cold start protection

The extrusion motor will automatically stop if it does not reach the set melting temperature, avoiding losses caused by operating errors.


  • Previous:
  • next:

  • Model LST600C
    Rated Voltage 230V/120V
    Frequency 50/60HZ
     Extruding Motor Power 800W
    Hot Air Power  1600W
    Welding Rod Heating Power 800W
    Air Temperature 20-620℃
    Extruding Temperature 50-380℃
    Extruding Volume 2.0-2.5kg/h
    Welding Rod Diameter Φ3.0-4.0mm
    Driving Motor  Hitachi
    Body weight 6.9kg
    Certification CE
    Warranty 1 year
