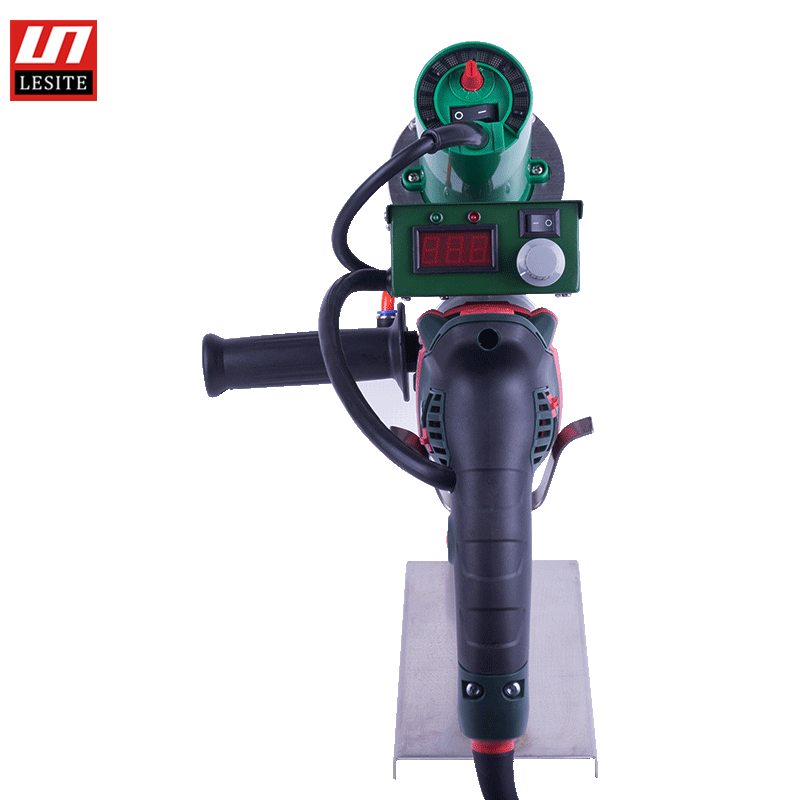

Manual extrusion welding gun LST610A

Short description:

➢ The plastic extruder uses a 1300w electric drill imported from Germany's Metabo as the extrusion motor, with high power, low resistance and strong protection. The dual heating system can independently control the heating temperature of the base material and the welding rod. The welding efficiency is high and the welding seam quality is good. At the same time, it is equipped with welding rod heating digital temperature control display, 360-degree rotating welding nozzle, convenient operation, stable performance, large extrusion capacity, continuous welding, suitable for welding of PE, PP and plastic.

➢ Provide neutral packaging and small batch customization services.

➢ Provide small batch customization services for various welding boots.

➢ The LCD display of the control box is more intuitive and convenient.

➢ Third-party CE certification test.

➢ The intelligent control system adopts double protection, drive motor cold start protection, automatic heating temperature compensation, improve the reliability of the extrusion welding gun, try to avoid malfunctions caused by misoperation, and extend the service life of the machine.

send email

Advantage

Specifications

Application

Video

Manual

Advantage

Dual heating system

The extrusion heating system and the hot air heating system are independently controlled to ensure that the melting temperature of the material and the electrode is consistent. So as to achieve the best welding effect

Digital display controller

Microcomputer chip control, simple and intuitive operation, strong protection function.

360 degree rotating welding head

The hot-air welding nozzle can be adjusted 360 degrees to meet different application requirements.

Motor cold start protection

If the preset melting temperature is not reached, the extrusion motor will not work. Effectively avoid damage to the equipment caused by misoperation.

Previous: LST600C Plastic Manual Extruder

next: Extrusion welding machine double heating LST610B

Model	LST610A
Rated Voltage	230V
Frequency	50/60HZ
Extruding Motor Power	1300W
Hot Air Power	1600W
Welding Rod Heating Power	800W
Air Temperature	20-620℃
Extruding Temperature	50-380℃
Extruding Volume	2.0-3.0kg/h
Welding Rod Diameter	Φ3.0-5.0mm
Driving Motor	METABO
Body weight	7.2kg
Certification	CE
Warranty	1 year
