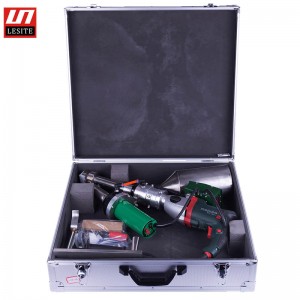

Extrusion welding machine LST620

Short description:

➢ This plastic extrusion welding machine is the first domestic plastic pellet extrusion welding machine with dual independent heating systems, digital display controllers, 360-degree rotating welding heads, and motor cold start protection. It is suitable for PE, PP and other hot melts. Welding of materials.

➢ The intelligent control system adopts double protection, drive motor cold start protection, automatic heating temperature compensation, improve the reliability of the extrusion welding gun, try to avoid malfunctions caused by misoperation, and extend the service life of the machine.

➢ Provide neutral packaging and small batch customization services

➢ Provide small batch customization services for various welding boots

➢ The LCD display of the control box is more intuitive and convenient

➢ Third-party CE certification test


Advantage

Specifications

Application

Video

Manual

Advantage

Dual heating system

The feeding heating system and hot air heating system ensure the best welding quality.

Digital display controller

The microcomputer chip controller is easy to operate.

360 degree rotating welding head

The 360-degree rotating hot-air welding nozzle can meet different needs.

Motor cold start protection

The extrusion motor will automatically stop if it does not reach the set melting temperature, avoiding losses caused by operating errors.

Plastic pellet feed

The plastic pellet feeding barrel has large extrusion capacity and is easy to operate.


  • Previous:
  • next:

  • Model LST620
    Rated Voltage 230V
    Frequency 50/60HZ
    Extruding Motor Power 1300W
    Hot Air Power  1600W
    Plastic Granules Heating Power 800W
    Air Temperature 20-620℃
    Extruding Temperature  50-380℃
    Extruding Volume 2.0-3.5kg/h
    Granules Diameter φ3.0-5.0mm
    Driving Motor METABO
    Body weight 8.0kg
    Certification CE
    Warranty 1 year
